Geometric Proofs of Trigonometric Identities

Posted on January 17, 2018 by wrose31

Sparked by a conversation this past weekend about the usefulness of the half-angle identities, I constructed geometric proofs for $\sin(x/2)$ and $\cos(x/2)$ . Since I’ve never seen these anywhere before, I thought I’d share.

And while I was at it, I thought I’d share all my other geometric proofs, so here they are, posted mostly without comment.

Some of these are so well-known as to be not worth mentioning. Many of them have been stolen from Proofs Without Words I or Proofs Without Words II. I came up with a few of them myself. Frustratingly, almost none of them are to be found in Precalculus textbooks, where they might be learned and appreciated.

Pythag 1

________________________________________________________

Pythag 2

__________________________________________________________

Pythag 3

_____________________________________________________________

Pythag 4

________________________________________________________________

Sincos of a sum 1

_______________________________________________________________ Sincos of a sum 2

______________________________________________________________

sincos of a diff 1

_________________________________________________________________

sincos of a diff 2

______________________________________________________________

Though this one is my favorite:

sine and cosine of a sum best 1

____________________________________________________________________________

sine and cosine of a sum best 2

_______________________________________________________________________________________

Partially because of the way it naturally generalizes into the proof of the derivative of sine. If you just let $\beta$ approach 0, $\cos(\beta)$ approaches 1 and that point in the interior of the circle ends up on the circle, where $\sin(\beta)$ merges with $\beta$ itself.

Proof of derivative of sinx

_____________________________________________________________________________________

double angle 1

______________________________________________________________________________________

double angle 2

_______________________________________________________________________________________

double angle 3

___________________________________________________________________________________

half angle 1

__________________________________________________________________________________

half angle 2

___________________________________________________________________________________________

half angle 3

____________________________________________________________________________________

half angle 4 ____________________________________________________________________________________

And finally, one that shows that the sum of a sine and cosine function of the same argument is also a sinusoid. Since I lost the original picture and don’t feel like remaking it, you’ll have to complete the proof on your own!

sum of sine and cosine

____________________________________________________________________________________

Update: After some feedback on twitter, I’ve decided to add a few more diagrams. Tim Brzezinski sent me a link to his website of geometric proofs of trig identities and he had some that I’ve never seen before.

Check it out!

https://www.geogebra.org/m/DxAcj8E2#material/QedMT7Pw

I’ve taken two of his diagrams and added them below.

tan of a sum 1

_________________________________________________________

tan of a sum 2

____________________________________________________________________________________

tan of a diff 1

_________________________________________________________________________________________

tan of a diff 2

I ♥ Icosahedra

Posted on April 22, 2014 by Mr. Chase

Do you love icosahedra?

I do. On Sunday, I talked with a friend about an icosahedron for over an hour. Icosahedra, along with other polyhedra, are a wonderfully accessible entry point into math–and not just simple math, but deep math that gets you pretty far into geometry and topology, too! Just see my previous post about Matthew Wright’s guest lecture.)

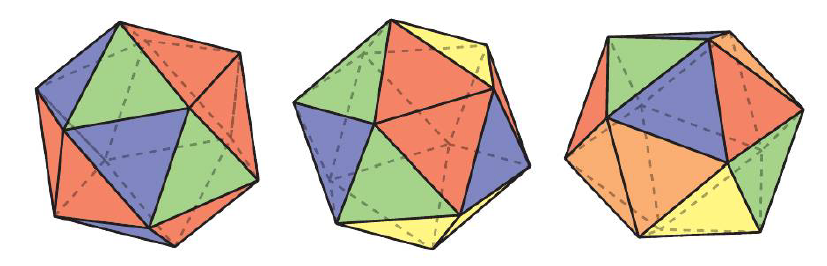

A regular icosahedron is one of the five regular surfaces (“Platonic Solids”). It has twenty sides, all congruent, equilateral triangles. Here are three icosahedra:

Here’s a question which is easy to ask but hard to answer:

How many ways can you color an icosahedron with one of n colors per face?

If you think the answer is $n^{20}$ , that’s a good start–there are $n$ choices of color for 20 faces, so you just multiply, right?–but that’s not correct. Here we’re talking about an unoriented icosahedron that is free to rotate in space. For example, do the three icosahedra above have the same coloring? It’s hard to tell, right?

Solving this problem requires taking the symmetry of the icosahedron into account. In particular, it requires a result known as Burnside’s Lemma.

For the full solution to this problem, I’ll refer you to my article, authored together with friends Matthew Wright and Brian Bargh, which appears in this month’s issue of MAA’s Math Horizons Magazine here (JSTOR access required).

I’m very excited that I’m a published author!

Why I hate the definition of trapezoids (part 3)

Posted on August 12, 2013 by Mr. Chase

Yes it’s true. I’m writing about trapezoids again (having written passionately about them here and here previously). I’ve been taking a break from blogging, as I usually do in the summer. For us, school starts in just two weeks. So I thought I’d come out of my shell and post something…and of course I always have something to say about trapezoids :-).

Let’s start with the following easy test question. Don’t peek. See if you can answer the question without any help.

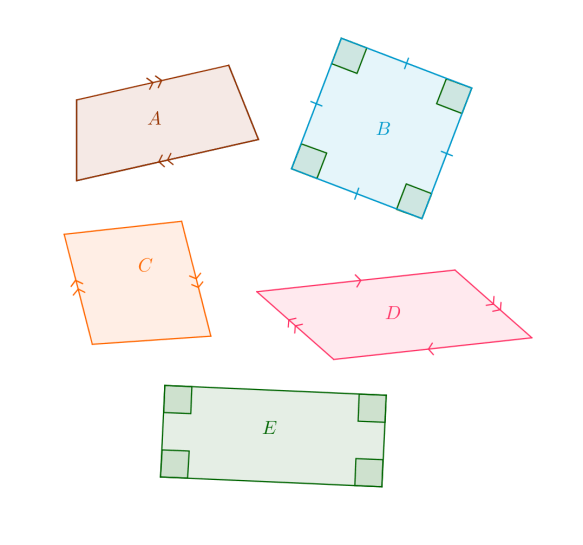

Which of the following quadrilaterals are trapezoids?

Before giving the answer, let me first just remind you about my very strongly held position. I believe that instead of this typical textbook definition (the “exclusive definition” we’ll call it) that reads:

“A quadrilateral with one and only one pair of parallel sides.”

the definition should be made inclusive, and read:

“A quadrilateral with at least one pair of parallel sides.”

So the test question above was easy, right? Quadrilaterals (A) and (C) are trapezoids, I hear you say.

Not so fast!! If you’re using the inclusive definition, then the correct answers are actually (A), (B), (C), (D), and (E). But it gets better: If you were using the the exclusive definition, then NONE of these are trapezoids. In order for (A) and (C) to be trapezoids, under the exclusive definition, you must prove that two sides are parallel AND the two remaining sides are not parallel (and you can’t assume that from the picture…especially for (C)!).

Can you see the absurdity of the exclusive definition now?

I finish by offering the following list of reasons why the inclusive definition is better (can you suggest more reasons?):

All other quadrilaterals are defined in the inclusive way, so that quadrilaterals “beneath” them inherit all the properties of their “parents.” A square is a rectangle because a square meets the definition of a rectangle. Likewise, parallelograms, rectangles, rhombuses, and squares should all be special cases of a trapezoid.
The area formula for a trapezoid still works, even if the legs are parallel. It’s true! The area formula $A=\frac{1}{2}h(b_1+b_2)$ works fine for a parallelogram, rectangle, rhombus, or square.
No other definitions break when you use the inclusive definition. With the exception of the definition that some texts use for an isosceles trapezoid. Those texts define an isosceles trapezoid has having both legs congruent, which would make a parallelogram an isosceles trapezoid. Instead, define an isosceles trapezoid as having base angles congruent, or equivalently, having a line of symmetry.
The trapezoidal approximation method in Calculus doesn’t fail when one of the trapezoids is actually a rectangle. But under the exclusive definition, you would have to change its name to the “trapezoidal and/or rectangular approximation method,” or perhaps ban people from doing the trapezoidal method on problems like this one: Approximate $\int_0^4(4x-x^2)dx$ using the trapezoidal method with 5 equal intervals. (Note here that the center trapezoid is actually a rectangle…God forbid!!)
When proving that a quadrilateral is a trapezoid, one can stop after proving just two sides are parallel. But with the exclusive definition, in order to prove that a quadrilateral is a trapezoid, you would have to prove two sides are parallel AND the other two sides are not parallel (see the beginning of this post!).

Flat Donuts

Posted on March 22, 2013 by genechase

[Guest blogger Dr. Gene Chase]

You know about flat donuts if you played a computer game in which when you go off the screen at the left, you return coming in at the right, and similarly when you go off the screen at the top, you return coming in at the bottom.

Mathematicians call the rectangle of your computer screen a flat torus. The word “torus” reminds us that we are only thinking of the surface of the donut.

What does that computer screen have to do with a torus? Stretch the screen around a torus as this picture begins to show.

Flat Donut Being Wrapped around Curved Donut

Since the left and right sides of the screen are “the same” and the top and bottom sides of the screen are “the same,” the screen seamlessly takes the shape of the donut. Mathematicians say that the flat donut and the donut have the same topology, because we bent one into the other without cutting or pasting. (I remind you that opposite edges of the flat donut were already pasted by regarding them as “the same” before we began to bend it.)

Although a flat torus and a torus have the same topology, they do not have the same geometry. Geometry is about measuring space. In particular, on a flat torus, the shortest distance between two points is always a straight line. But on a torus, the shortest distance between two points staying in the torus is never a straight line.

Is it possible to paste the opposite edges of the flat torus together in such a way that the resulting thing in 3D has the same geometry? That is, such that straight lines are still straight?

It is easy to take one step, to create a cylinder, by pasting together just one pair of opposite edges. Notice that no stretching is involved at all.

Cylinder with square grid

How about pasting both pairs of edges? My intuition says that such a thing is impossible.

My intuition is wrong. In 1954, John Nash — yes, that John Nash of A Beautiful Mind — proved that it is possible, but without saying how. (He gave a so-called “existence proof.”)

But only 11 months ago did we have a picture of what the resulting flat torus would look like. Here’s a news article with a computer-generated picture to illustrate it.

Flat Torus Embedded in 3D Isometrically

Geometry Is Beautiful

Posted on March 20, 2013 by genechase

$Header of Dimensions$

Find nine 14-minute videos on geometry here. They’re breathtakingly beautiful!.

1 Mapmaking: Stereographic projection of Earth
9 Proving: the essence of mathematics
2 M.C. Escher: Stereographic projection of the Platonic solids
3 Four-dimensional polyhedra: Simplex, hypercube, 24-cell, 120-cell, 600-cell
4 The three-sphere and 4D polyhedra viewed stereographically
5 Complex numbers: Now a sphere is a “complex projective line”
6 Transformations with complex numbers: Some Möbius (linear fractional) transformations, some fractals (quadratic)]
7-8 Hopf fibration of three-sphere

Each video starts very simply and gets harder, but the computer graphics are so incredibly stunning that you will stay for the pictures even after you lose the narration. They are somewhat cumulative. Don’t jump into the middle. Number 9 can be watched at any time. The authors recommend last or second.

[Posted & edited by Dr. Gene Chase. Reviewed in American Mathematical Monthly, vol. 120, no. 3, March 2013, pp. 288-290.]

Stellar application of the FTC

Posted on January 28, 2013 by Mr. Chase

Here’s a “stellar” application of the Fundamental Theorem of Calculus, created by one of my students. It is a stellated icosahedron made up of 30 individual pieces of paper, all of which have the FTC printed on them. Doesn’t it just make you smile? 🙂

Pumpkin Pi

Posted on October 6, 2012 by Mr. Chase

Decorating for fall? Consider creating some beautiful DIY pumpkins with a mathematical flair–perfect for on top of the hearth or next to the porch swing out front :-).

These were created by Messiah College students (my alma mater) and the photo comes by way of Professor Sam Wilcock, my advisor. Go Falcons!

Plane humor

Posted on May 30, 2012 by Mr. Chase

[ht: Tim Chase]

Mathematical Pasta

Posted on March 5, 2012 by Mr. Chase

Geek mom author Helene McLaughlin reviews this great geeky book about the mathematics of 92 (!!) different kinds of pasta [hat tip to Tim Chase]:

When mixing flour, egg, salt and water to make pasta, I’d guess the only math you consider is how many minutes you have left before the kids will be begging for dinner. I’d guess that you never really contemplated the mathematical beauty of that rigatoni or cavatappi that you are eating. Thats not the way George L. Legendre eats pasta.

In an effort to bring order to the possible chaos of cooking, George L. Legendre takes cooking geek to the next level with his unique book, “Pasta by Design“. Legendre takes 92 of the most familiar types of pasta, categorizes them, determines the complex mathematical equation describing the shape and shows us incredibly intricate computer models for each type of pasta.
